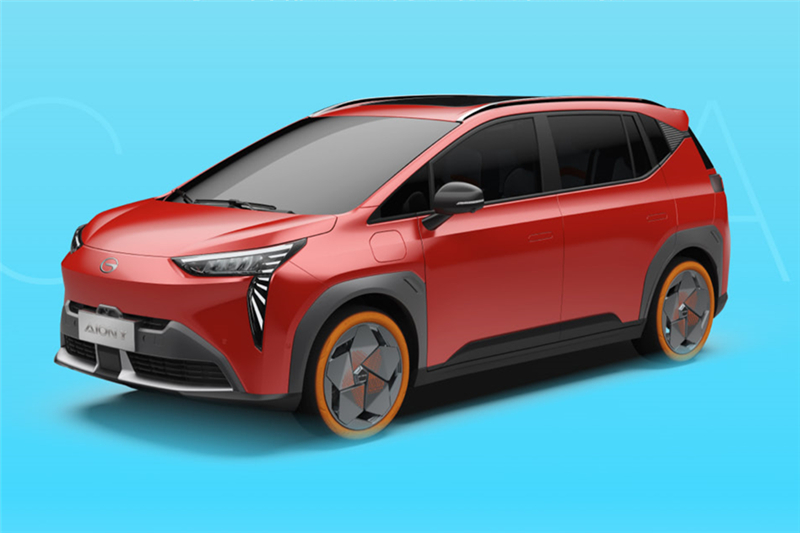

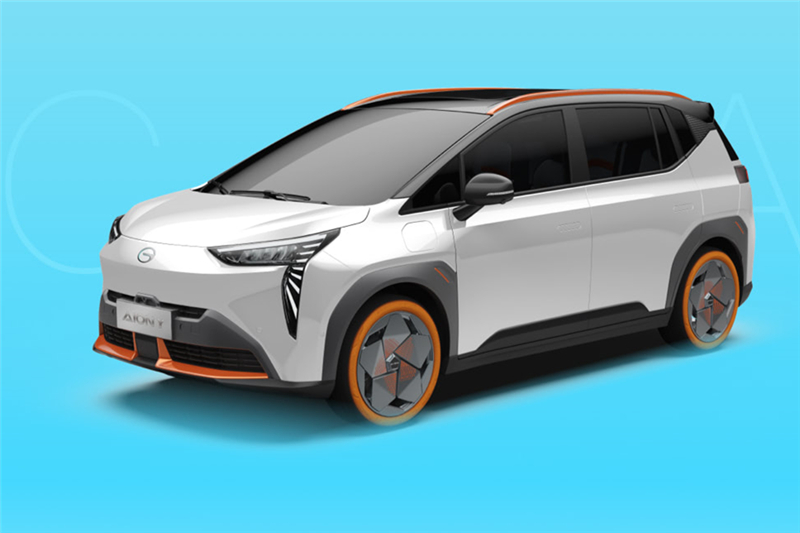

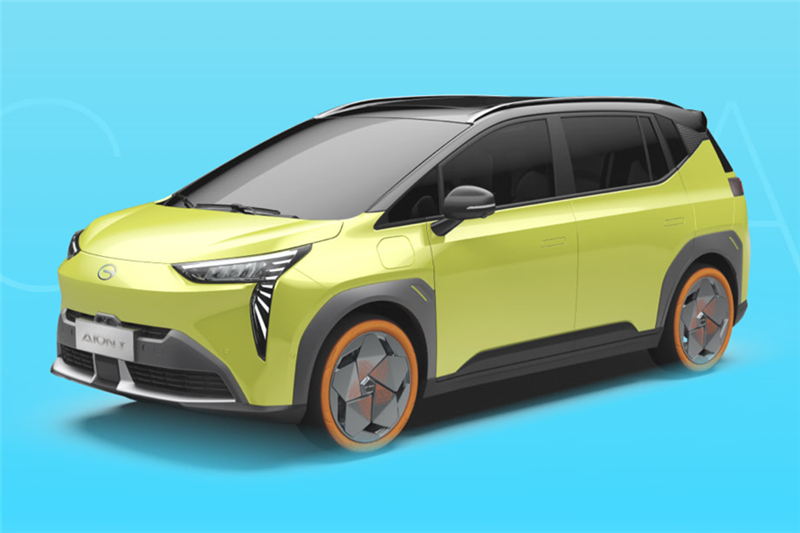

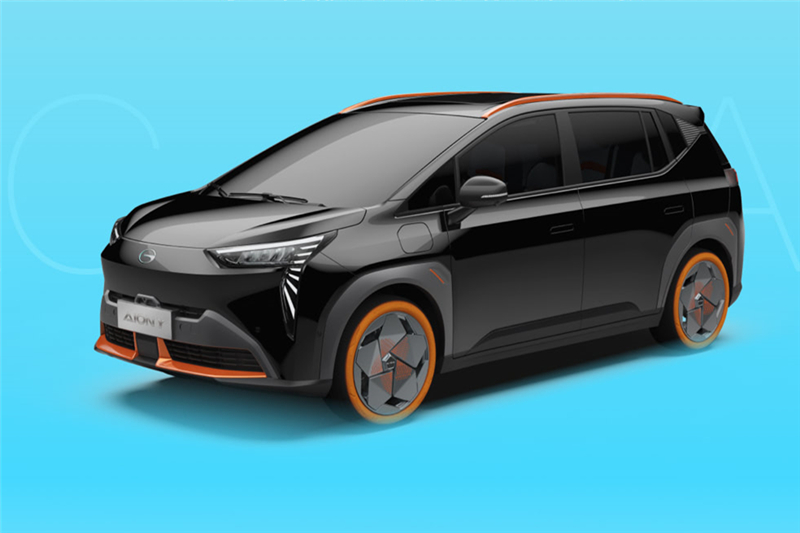

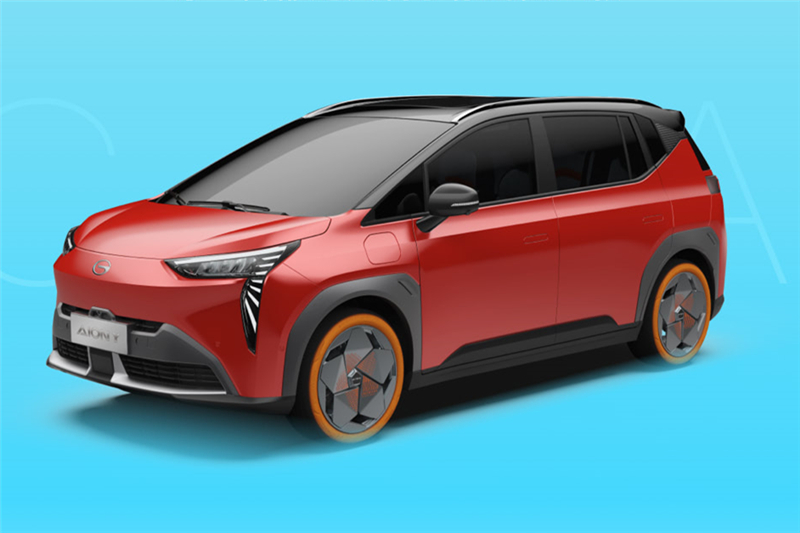

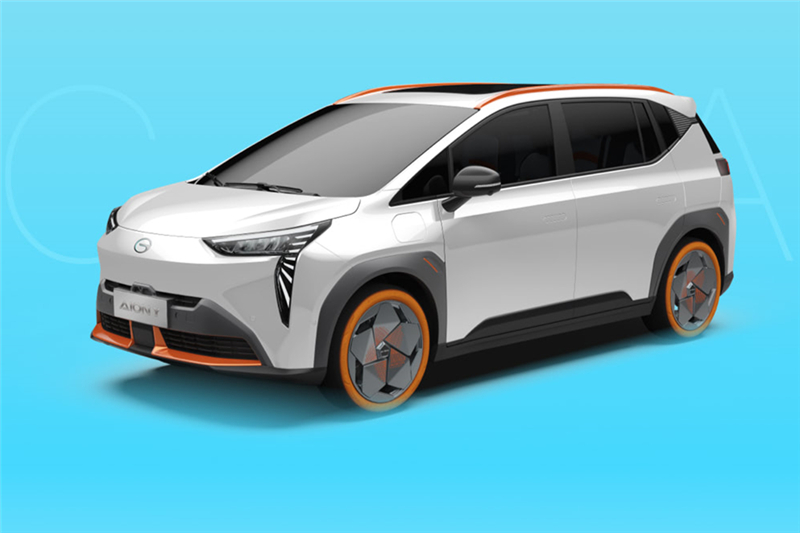

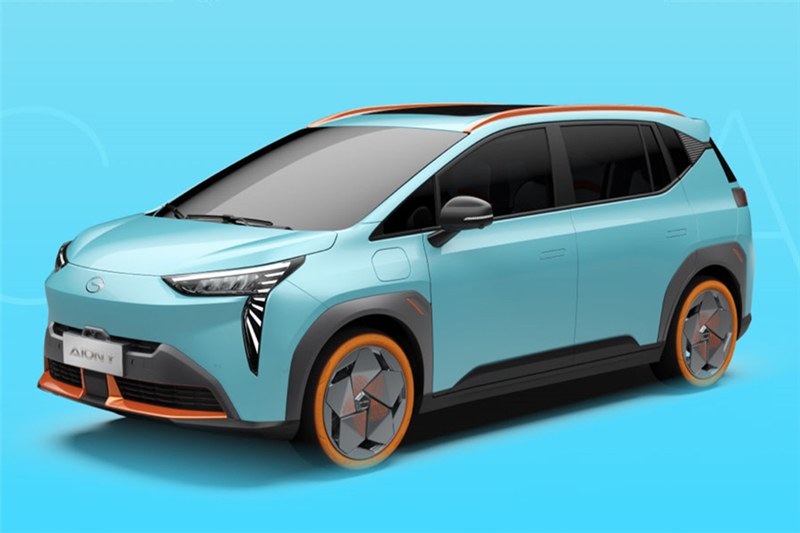

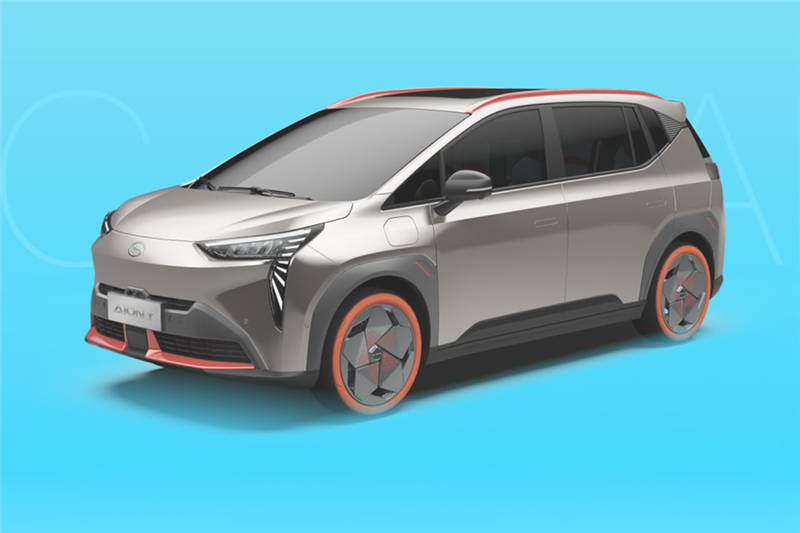

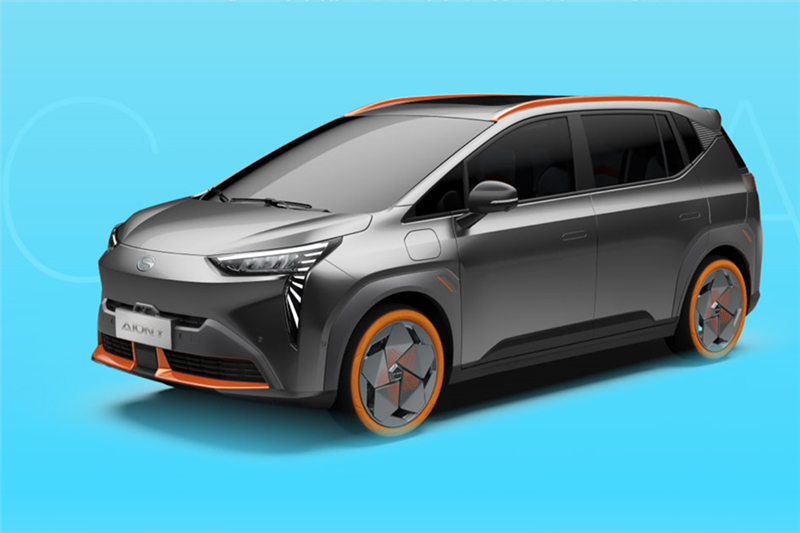

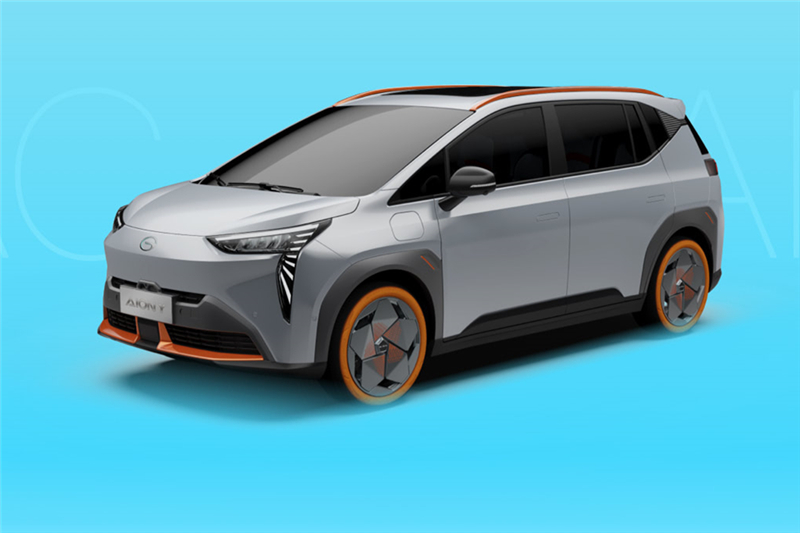

GAC Auto AION Y 2021

0

Configuration parameter

Basic information(-: None ●: Yes ○: Optional △: To be checked)

Power type Pure electric
Motor maximum capacity(kW) 135
Motor maximum torque(Nm) 225

Body parameters(-: None ●: Yes ○: Optional △: To be checked)

Length(mm) 4410
Width(mm) 1870
Height(mm) 1645
Weight(kg) -
Wheel base(mm) 2750
Front track(mm) -
Rear track(mm) -
Minimum ground clearance(mm) 150
Body structure SUV
Number of door 5
Number of seat 5
Trunk capacity(L) -

Motor(-: None ●: Yes ○: Optional △: To be checked)

Motor type Permanent magnet synchronous motor
Motor maximum capacity(kW) 135
Motor maximum torque(Nm) 225

Battery(-: None ●: Yes ○: Optional △: To be checked)

Battery type Ternary lithium ion battery
Battery endurance mileage 600
Charging time to 80% battery capacity -
Battery capacity(kWh) 76
Power consumption per 100km(kWh) 13.8
Fast full charing time -
Battery warranty policy
Normal full charging time -

Chassis steering(-: None ●: Yes ○: Optional △: To be checked)

Drive mode Forward wheel drive

Manipulation configuration(-: None ●: Yes ○: Optional △: To be checked)

ESP/ESC
Hill descent control
Auto hold
Blind spot information system -
Lane departure warning system -
Integral active steering -

Interior specification(-: None ●: Yes ○: Optional △: To be checked)

Parking distance control Front - / rear ●
Backup camera
Round view camera
Cruise control
Self-adaptive cruise control -
Wireless charging -

Multimedia configuration(-: None ●: Yes ○: Optional △: To be checked)

Center console color screen
Dimensions of console color screen 14.6 inches
LCD divi-screen display -
